  1. Create VLAN 10.
    1. Select Security > Traffic Control > Private VLAN > Private VLAN Type Configuration.

      A screen similar to the following displays.


    2. Under Private VLAN Type Configuration, select the VLAN ID 100 check box.

      Now 100 appears in the interface field at the top.

    3. In the Private VLAN Type field, select Primary from the pull-down menu.

    4. Click Apply to save the settings

  2. Assign VLAN 101 as an isolated VLAN.
    1. Select Security > Traffic Control > Private VLAN > Private VLAN Type Configuration.

      A screen similar to the following displays.


    2. Under Private VLAN Type Configuration, select the VLAN ID 101 check box.

      Now 101 appears in the interface field at the top.

    3. In the Private VLAN Type field, select Isolated from the pull-down menu.

    4. Click Apply to save the settings

  3. Assign VLAN 102 to community VLAN.

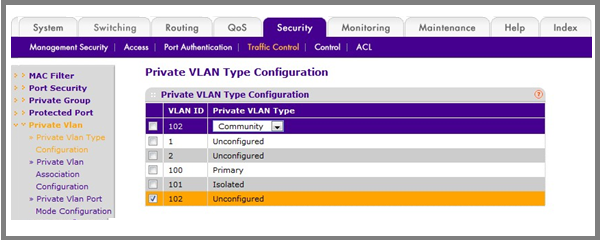

    1. Select Security > Traffic Control > Private VLAN > Private VLAN Type Configuration.

      A screen similar to the following displays.


    2. Under Private VLAN Type Configuration, select the VLAN ID 102 check box.

      Now 102 appears in the interface field at the top.

    3. In the Private VLAN Type field, select Community from the pull-down menu.

    4. Click Apply to save the settings.


For more information, see the following support articles:



This article applies to the following managed switches and their respective firmware:

  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • M4100 - firmware version 10.0.1.x
    • M4100-26G (GSM7224v2h2)
    • M4100-50G (GSM7248v2h2)
    • M4100-26G-POE (GSM7226Pv1h1)
    • M4100-50G-POE+ (GSM7248Pv1h1)
    • M4100-26G-POE (FSM7226Pv1h1)
    • M4100-50-POE (FSM7250Pv1h1)
    • M4100-D12G (GSM5212v1h1)
    • M4100-D10-POE (FSM5210Pv1h1)
  • M7100 - firmware version 10.0.1.x
    • M7100-24X (XSM7224)
