The following example shows how to authenticate the dot1x users by a RADIUS server. The management IP address is 10.100.5.33/24.

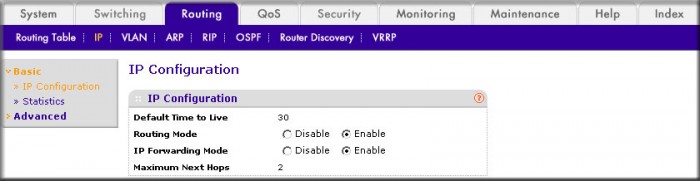

  1. Enable routing for the switch.
    1. Select Routing > Basic > IP Configuration.

      A screen similar to the following displays.


    2. For Routing Mode, select the Enable radio button.
    3. Click Apply to save the settings.

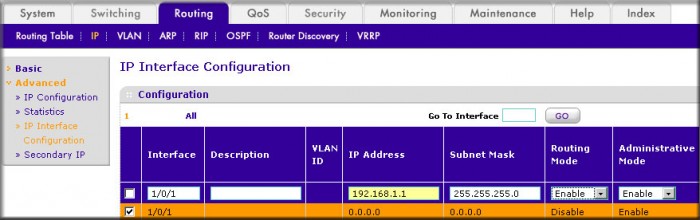

  2. Assign IP address 192.168.1.1/24 to the interface 1/0/1.
    1. Select Routing > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Under IP Interface Configuration, scroll down and select the Interface 1/0/1 check box.

      Now 1/0/1 appears in the Interface field at the top.

    3. Enter the following information:
      • In the IP Address field, enter 192.168.1.1.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.

    4. Click Apply to save the settings.

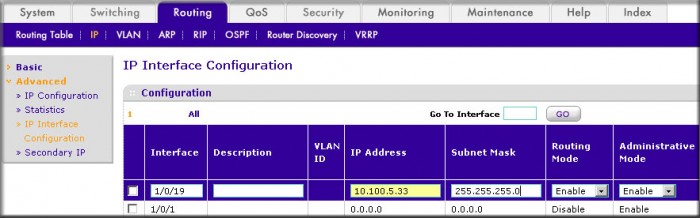

  3. Assign IP address 10.100.5.33/24 to interface 1/0/19:
    1. Select Routing > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the interface 1/0/19 check box.

      Now 1/0/19 appears in the Interface field at the top.

    3. Enter the following information:
      • In the IP Address field, enter 10.100.5.33.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.

    4. Click Apply to save the settings.

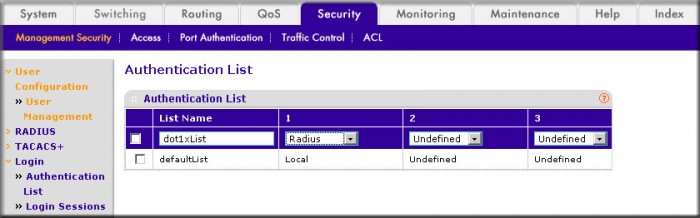

  4. Create an authentication name list.
    1. Select Security > Management Security > Login > Authentication List.

      A screen similar to the following displays.


    2. Select the check box before dot1xList.
    3. In the 1 list, select Radius.
    4. Click Apply.

  5. Set port 1/0/19 to force authorized mode. (In this case, the RADIUS server is connected to this interface.)
    1. Select Security > Port Authentication > Advanced > Port Authentication.

      A screen similar to the following displays.


    2. Scroll down and select the Interface 1/0/19 check box.

      Now 1/0/19 appears in the Interface field at the top.

    3. In the Control Mode list, select Force Authorized.
    4. Click Apply to save the settings.

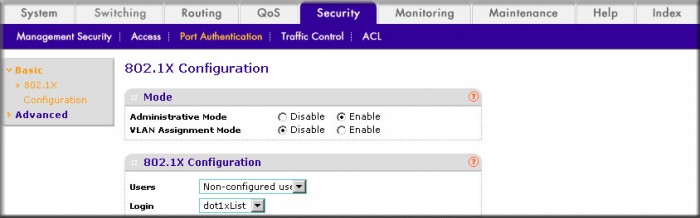

  6. Enable dot1x on the switch.
    1. Select Security > Port Authentication > Server Configuration.

      A screen similar to the following displays.


    2. For Administrative Mode, select the Enable radio button.
    3. In the Login list, select dot1xList.
    4. Click Apply to save settings.

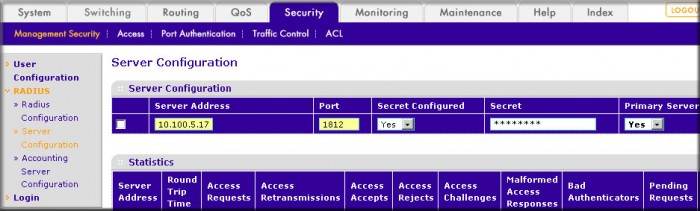

  7. Configure the RADIUS authentication server.
    1. Select Security > Management Security > Server Configuration.

      A screen similar to the following displays.


    2. In the Server Address field, enter 10.100.5.17.
    3. In the Secret Configured field, select Yes.
    4. In the Secret field, enter 123456.
    5. In the Primary Server field, select Yes.
    6. In the Message Authenticator field, select Enable.
    7. Click Add.

  8. Enable accounting.
    1. Select Security > Management Security > RADIUS > Radius Configuration.

      A screen similar to the following displays.


    2. In the Server Address field, enter 10.100.5.17.
    3. In the Accounting Mode field, select Enable.
    4. Click Apply.

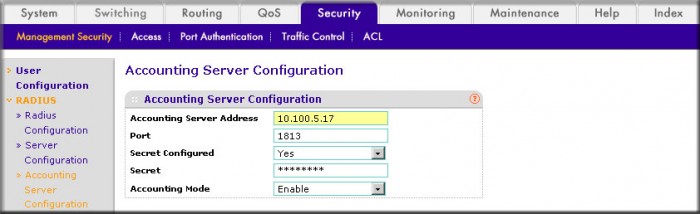

  9. Configure the accounting server.
    1. Select Security > Management Security > RADIUS > Radius Accounting Server Configuration.

      A screen similar to the following displays.


    2. In the Accounting Server Address field, enter 10.100.5.17.
    3. In the Accounting Mode field, select Enable.
    4. Click Apply.


For more information, see the following support articles:





This article applies to the following managed switches and their respective firmware:





  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • M4100 - firmware version 10.0.1.x
    • M4100-26G (GSM7224v2h2)
    • M4100-50G (GSM7248v2h2)
    • M4100-26G-POE (GSM7226Pv1h1)
    • M4100-50G-POE+ (GSM7248Pv1h1)
    • M4100-26G-POE (FSM7226Pv1h1)
    • M4100-50-POE (FSM7250Pv1h1)
    • M4100-D12G (GSM5212v1h1)
    • M4100-D10-POE (FSM5210Pv1h1)
  • M7100 - firmware version 10.0.1.x
    • M7100-24X (XSM7224)
  • XSM7224S - firmware version 9.0.1.x
