  1. Create MVLAN 999, VLAN1 1001, VLAN2 1002 and VLAN3 1003.
    1. Select Switching > VLAN > Basic > VLAN Configuration.

      A screen similar to the following displays:


    2. In the VLAN ID field, enter 999, and in the VLAN Name field, enter mVlan.
    3. Click Add.
    4. Repeat step b and c to create VLAN1 1001, VLAN2 1002, and VLAN3 1003.

  2. Add port 9 into MVLAN 999 with tagged mode.

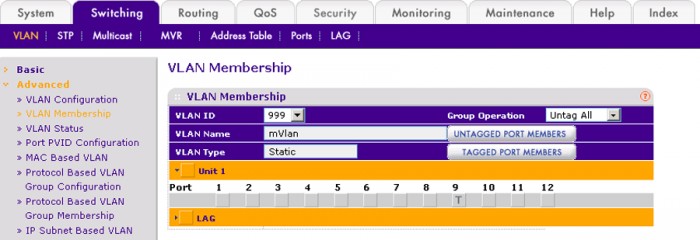

    1. Select Switching > VLAN > Advanced > VLAN Membership.

      A screen similar to the following displays:


    2. In the VLAN ID list, select 999.
    3. Click Unit 1. The ports display.
    4. Click the gray box under port 9 until T displays.

      The T specifies that the egress packet is tagged for the ports.

    5. Click Apply to save the settings.
    6. Repeat steps from b to e, add port 0/1 to VLAN1 1001, add port 0/5 to VLAN2 1002, and add port 0/7 to VLAN3 1003.

  3. Enable MVR and multicast VLAN

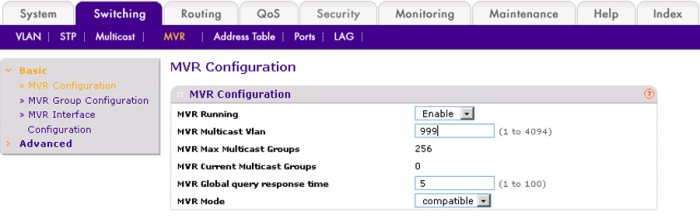

    1. Select Switching > MVR > Basic > MVR Configuration.

      A screen similar to the following displays:


    2. For MVR Running, select Enable.
    3. In the MVR Multicast VLAN field, enter 999.
    4. Click Apply.

  4. Add multicast group 224.1.2.3 to MVR.

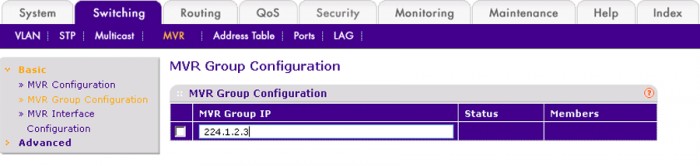

    1. Select Switching > MVR > Basic > MVR Group Configuration.

      A screen similar to the following displays:


    2. In the the MVR Group IP field, enter 224.1.2.3.
    3. Click Add.
  5. Configure a receiver on interface 0/1, 0/5, and 0/7.
    1. Select Switching > MVR > Basic > MVR Interface Configuration.

      A screen similar to the following displays:


    2. Under MVR Interface Configuration, scroll down and select the Interface 0/1, 0/5 and 0/7 check boxes.
    3. Enter the following information:
      • In the Admin Mode list, select Enable.
      • In the Type list, select Receiver.

    4. Click Apply to save the settings.

  6. Configure source interface.

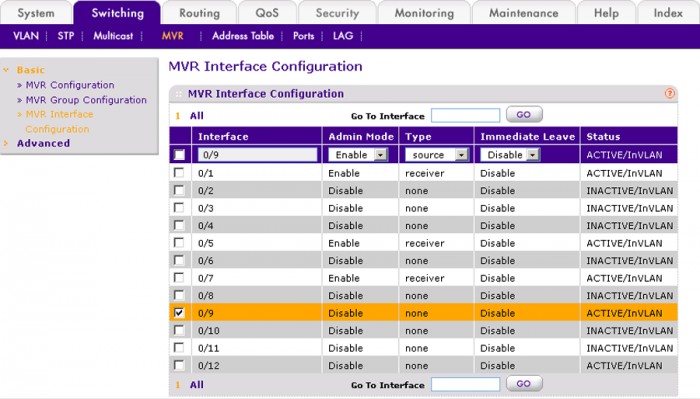

    1. Select Switching > MVR > Basic > MVR Interface Configuration.

      A screen similar to the following displays:


    2. Under MVR Interface Configuration, scroll down and select the Interface 0/9 check box.
    3. Enter the following information:
      • In the Admin Mode list, select Enable.
      • In the Type list, select source.

    4. Click Apply to save the settings.

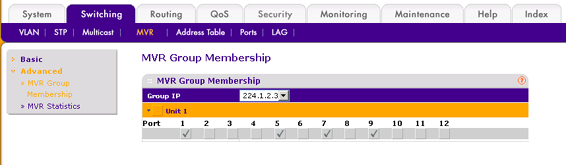

  7. Configure MVR Group Membership.
    1. Select Switching > VLAN > Advanced > VLAN Membership.

      A screen similar to the following displays:


    2. In the Group IP list, select 224.1.2.3.
    3. Click Unit 1. The ports display.
    4. Click the gray boxes under ports 1, 5, and 7.

      (Port 9 is already in MVR group 224.1.2.3 because it is configured as the source port.)

    5. Click Apply to save the settings.


For more information, see the following support articles:





This article applies to the following managed switches and their respective firmware:





  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • M4100 - firmware version 10.0.1.x
    • M4100-26G (GSM7224v2h2)
    • M4100-50G (GSM7248v2h2)
    • M4100-26G-POE (GSM7226Pv1h1)
    • M4100-50G-POE+ (GSM7248Pv1h1)
    • M4100-26G-POE (FSM7226Pv1h1)
    • M4100-50-POE (FSM7250Pv1h1)
    • M4100-D12G (GSM5212v1h1)
    • M4100-D10-POE (FSM5210Pv1h1)
  • M7100 - firmware version 10.0.1.x
    • M7100-24X (XSM7224)
    •
