This example shows how to set up one-way Web access using a TCP flag in an ACL. PC 1 can access FTP server 1 and FTP server 2, but PC 2 can access only FTP server 2.


This is a two-part process:

  • Configuring the Switch
  • Configuring the GSM7342S Switch



Configuring the Switch





  1. Create VLAN 30 with IP address 192.168.30.1/24.
    1. Select Routing > VLAN > VLAN Routing Wizard.

      A screen similar to the following displays.n the VLAN Routing Wizard.


    2. In the VLAN Routing Wizard, enter the following information:
      • In the Vlan ID field, enter 30.
      • In the IP Address field, enter 192.168.30.1.
      • In the Network Mask field, enter 255.255.255.0.

    3. Click Unit 1. The ports display.

    4. Click the gray box under port 35 twice until U displays.

      The U specifies that the egress packet is untagged for the port.

    5. Click Apply to save VLAN 30.

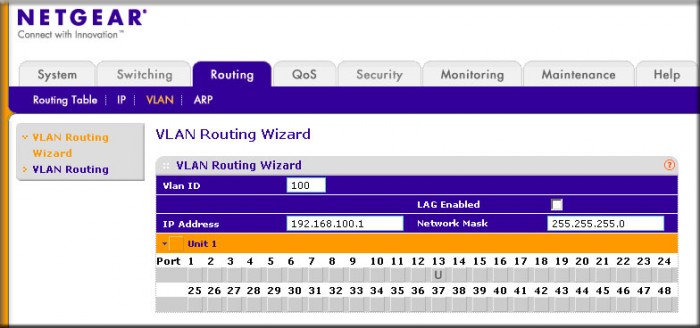

  2. Create VLAN 100 with IP address 192.168.100.1/24.
    1. Select Routing > VLAN > VLAN Routing Wizard.

      A screen similar to the following displays.


    2. Enter the following information:
      • In the Vlan ID field, enter 100.
      • In the IP Address field, enter 192.168.100.1.
      • In the Network Mask field, enter 255.255.255.0.

    3. Click Unit 1. The ports display.

    4. Click the gray box under port 13 twice until U displays. The U specifies that the egress packet is untagged for the port.

    5. Click Apply to save VLAN 100.

  3. Create VLAN 200 with IP address 192.168.200.1/24.
    1. Select Routing > VLAN > VLAN Routing Wizard.

      A screen similar to the following displays.


    2. Enter the following information:
      • In the Vlan ID field, enter 200.
      • In the IP Address field, enter 192.168.200.1.
      • In the Network Mask field, enter 255.255.255.0.

    3. Click Unit 1. The ports display.

    4. Click the gray box under port 44 twice until U displays. The U specifies that the egress packet is untagged for the port.

    5. Click Apply to save VLAN 200.

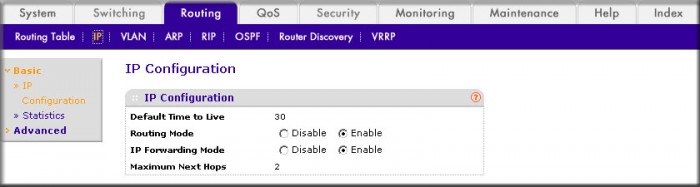

  4. Enable IP routing.
    1. Select Routing > IP > Basic > IP Configuration.

      A screen similar to the following displays.


    2. Under IP Configuration, make the following selections:
      • For Routing Mode, select the Enable radio button.
      • For IP Forwarding Mode, select the Enable radio button.

    3. Click Apply to enable IP routing.

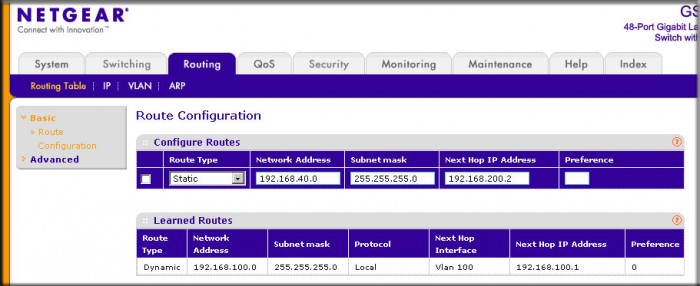

  5. Add a static route with IP address 192.268.40.0/24:
    1. Select Routing > Routing Table > Basic > Route Configuration.

      A screen similar to the following displays.


    2. Under Configure Routes, make the following selection and enter the following information:
      • In the Route Type list, select Static.
      • In the Network Address field, enter 192.168.40.0.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Next Hop IP Address field, enter 192.168.200.2.

    3. Click Add.

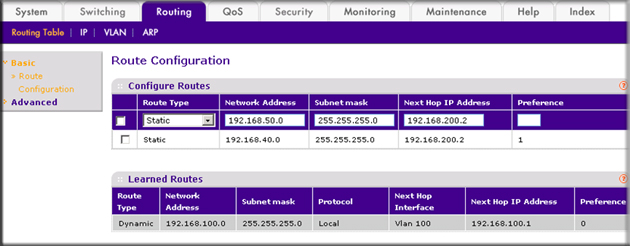

  6. Create a static route with IP address 192.168.50.0/24:
    1. Select Routing > Routing Table > Basic > Route Configuration.

      A screen similar to the following displays.


    2. Under Configure Routes, make the following selection and enter the following information:
      • In the Route Type list, select Static.
      • In the Network Address field, enter 192.168.50.0.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Next Hop IP Address field, enter 192.168.200.2.

    3. Click Add.

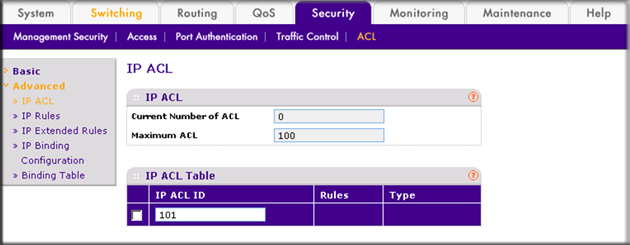

  7. Create an ACL with ID 101.
    1. Select Security > ACL > Advanced > IP ACL.

      A screen similar to the following displays.


    2. In the IP ACL Table, in the IP ACL ID field, enter 101.

    3. Click Add.

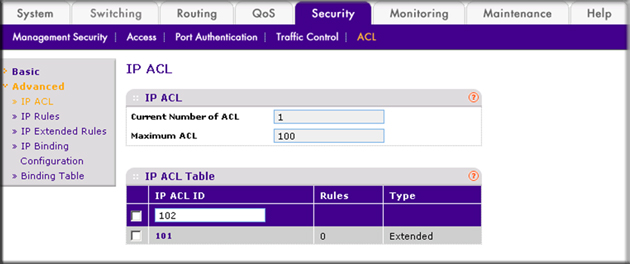

  8. Create an ACL with ID 102.
    1. Select Security > ACL > Advanced > IP ACL.

      A screen similar to the following displays.


    2. In the IP ACL Table, in the IP ACL ID field, enter 102.

    3. Click Add.

  9. Add and configure an IP extended rule that is associated with ACL 101.
    1. Select Security > ACL > Advanced > IP Extended Rules.

      A screen similar to the following displays.


    2. Under IP Extended Rules, in the ACL ID list, select 10.

    3. Click Add.

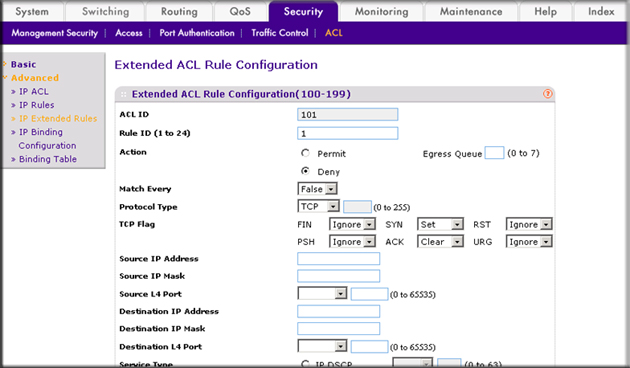

      The Extended ACL Rule Configuration screen displays.


    4. Under Extended ACL Rule Configuration (100-199), enter the following information and make the following selections:
      • In the Rule ID field, enter 1.
      • For Action mode, select the Deny radio button.
      • In the Match Every field, select False.
      • In the Protocol Type list, select TCP.
      • For TCP Flag, in the SYN field, select Set, and in the ACK field, select Clear.

    5. Click Apply to save the settings.

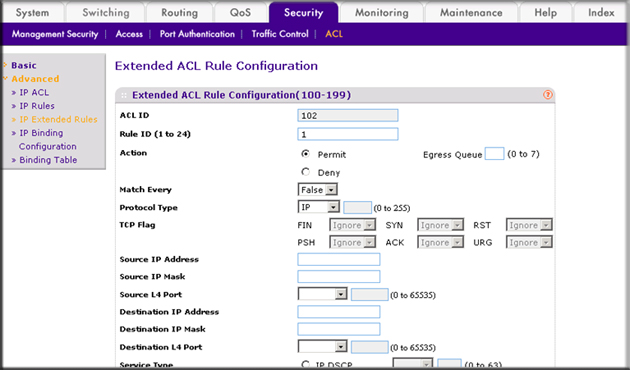

  10. Add and configure an IP extended rule that is associated with ACL 102.
    1. Select Security > ACL > Advanced > IP Extended Rules.

      A screen similar to the following displays.


    2. Under IP Extended Rules, in the ACL ID list, select 102.

    3. Click Add. The Extended ACL Rule Configuration screen displays.


    4. Under Extended ACL Rule Configuration (100-199), enter the following information and make the following selections:
      • In the Rule ID field, enter 1.
      • For Action, select the Permit radio button.
      • In the Match Every field, select False.
      • In the Protocol Type list, select IP.

    5. Click Apply to save the settings.

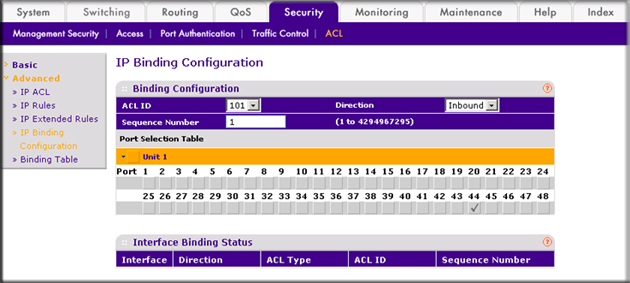

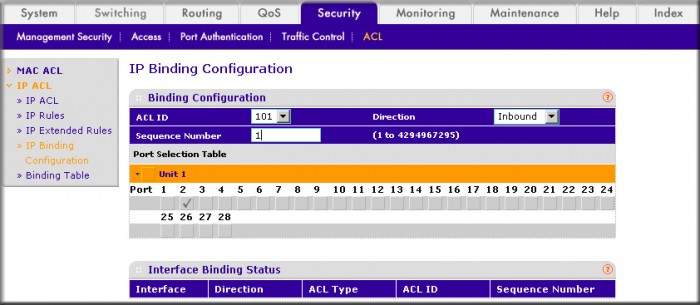

  11. Apply ACL 101 to port 44.
    1. Select Security > ACL > Advanced > IP Binding Configuration.

      A screen similar to the following displays.


    2. Under Binding Configuration, specify the following:
      • In the ACL ID list, select 101.
      • In the Sequence Number field, enter 1.

    3. Click Unit 1. The ports display.

    4. Click the gray box under port 44.

      A check mark displays in the box.

    5. Click Apply to save the settings.

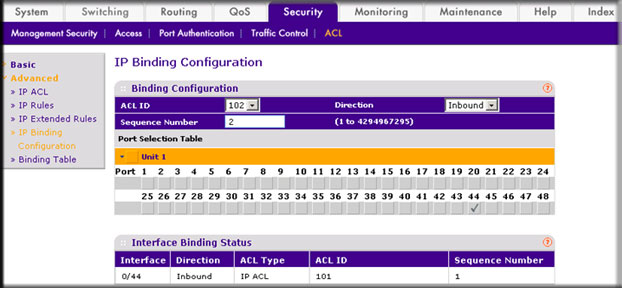

  12. Apply ACL 102 to port 44.
    1. Select Security > ACL > Advanced > IP Binding Configuration.

      A screen similar to the following displays.


    2. Under Binding Configuration, make the following selection and enter the following information:
      • In the ACL ID list, select 102.
      • In the Sequence Number field, enter 2.

    3. Click Unit 1. The ports display.

    4. Click the gray box under port 44. A check mark displays in the box.

    5. Click Apply to save the settings.





Configuring the GSM7342S Switch

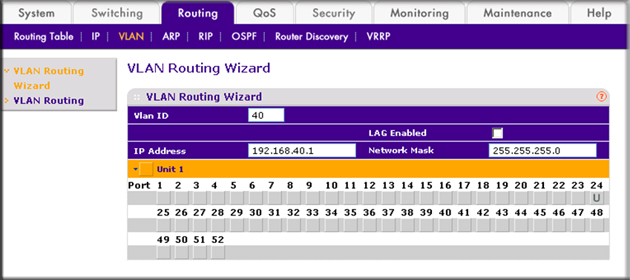

  1. Create VLAN 40 with IP address 192.168.40.1/24.
    1. Select Routing > VLAN > VLAN Routing Wizard.

      A screen similar to the following displays.


    2. Enter the following information:
      • In the Vlan ID field, enter 40.
      • In the IP Address field, enter 192.168.40.1.
      • In the Network Mask field, enter 255.255.255.0.

    3. Click Unit 1. The ports display.

    4. Click the gray box under port 24 twice until U displays. The U specifies that the egress packet is untagged for the port.

    5. Click Apply to save VLAN 40.

  2. Create VLAN 50 with IP address 192.168.50.1/24:
    1. Select Routing > VLAN > VLAN Routing Wizard.

      A screen similar to the following displays.


    2. Enter the following information:
      • In the Vlan ID field, enter 50.
      • In the IP Address field, enter 192.168.50.1.
      • In the Network Mask field, enter 255.255.255.0.

    3. Click Unit 1. The ports display.

    4. Click the gray box under port 25 twice until U displays.

      The U specifies that the egress packet is untagged for the port.

    5. Click Apply to save VLAN 50.

  3. Create VLAN 200 with IP address 192.168.200.2/24.
    1. Select Routing > VLAN > VLAN Routing Wizard.

      A screen similar to the following displays.


    2. Enter the following information:
      • In the Vlan ID field, enter 200.
      • In the IP Address field, enter 192.168.200.2.
      • In the Network Mask field, enter 255.255.255.0.

    3. Click Unit 1.

      The ports display.

    4. Click the gray box under port 48 twice until U displays.

      The U specifies that the egress packet is untagged for the port.

    5. Click Apply to save VLAN 200.

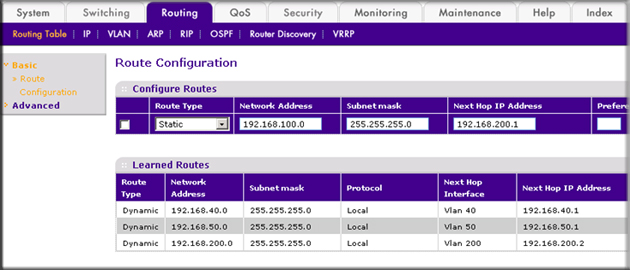

  4. Create a static route with IP address 192.168.100.0/24:
    1. Select Routing > Routing Table > Basic > Route Configuration.

      A screen similar to the following displays.


    2. Under Configure Routes, make the following selections and enter the following information:
      • Select Static in the Route Type field.
      • In the Network Address field, enter 192.168.100.0.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Next Hop IP Address field, enter 192.168.200.1.
      • Click Add.

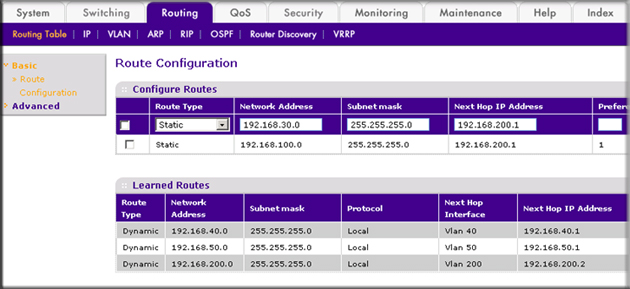

  5. Create a static route with IP address 192.168.30.0/24:
    1. Select Routing > Routing Table > Basic > Route Configuration.

      A screen similar to the following displays.


    2. Under Configure Routes, make the following selection and enter the following information:
      • In the Route Type field, select Static.
      • In the Network Address field, enter 192.168.30.0.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Next Hop IP Address field, enter 192.168.200.1.

    3. Click Add.




For more information, see the following support articles:





This article applies to the following managed switches and their respective firmware:





  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • M4100 - firmware version 10.0.1.x
    • M4100-26G (GSM7224v2h2)
    • M4100-50G (GSM7248v2h2)
    • M4100-26G-POE (GSM7226Pv1h1)
    • M4100-50G-POE+ (GSM7248Pv1h1)
    • M4100-26G-POE (FSM7226Pv1h1)
    • M4100-50-POE (FSM7250Pv1h1)
    • M4100-D12G (GSM5212v1h1)
    • M4100-D10-POE (FSM5210Pv1h1)
  • M7100 - firmware version 10.0.1.x
    • M7100-24X (XSM7224)
  • XSM7224S - firmware version 9.0.1.x
Last Updated:07/07/2025 | Article ID: 21717
