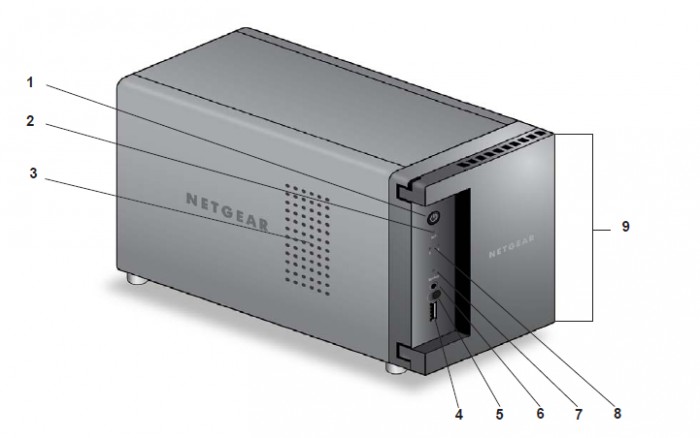

The following figure shows the front and side panels of ReadyNAS 312:


  1. Power button and LED
  2. Disk activity LED
  3. Exhaust vent
  4. USB 2.0 port
  5. Infrared remote receiver
  6. Backup button
  7. USB and Backup status LED
  8. Disk 1 and Disk 2 LEDs
  9. Drive bay door.

The following figure shows the drive bays of ReadyNAS 312:


  1. Drive bay door
  2. Disk tray handle
  3. Recessed disk tray locking mechanism
  4. Disk tray release latch
  5. Drive bays

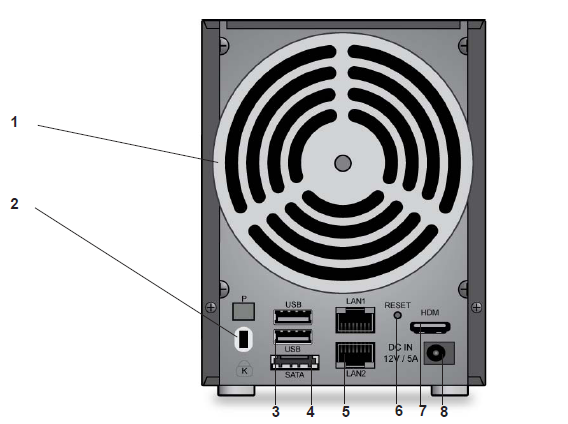

  • The following figure shows the rear panel of ReadyNAS 312:



    1. Exhaust fan
    2. Kensington lock
    3. USB 3.0 ports
    4. eSATA port
    5. LAN ports with LED status indicators
    6. Reset button
    7. HDMI port
    8. Power adapter socket
