DVMRP on Switch A



  1. Enable IP routing on the switch.

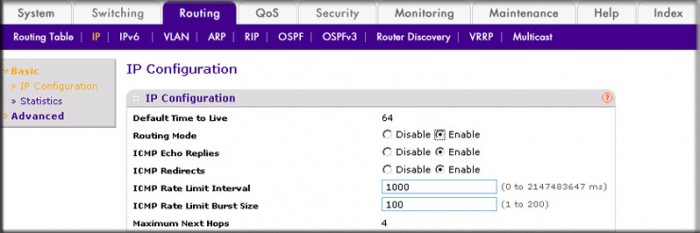

    1. Select Routing > IP > Basic > IP Configuration.

      A screen similar to the following displays.


    2. For Routing Mode, select the Enable radio button.
    3. Click Apply.

  2. Configure 1/0/11 as a routing port and assign an IP address to it.

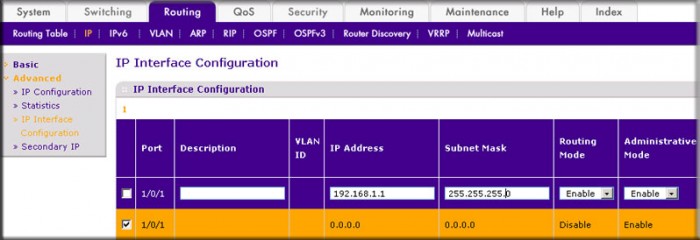

    1. Select Routing > IP > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Port 1/0/11 check box.

      Now 1/0/11 appears in the Port field at the top.

    3. Enter the following information:
      • In the IP Address field, enter 192.168.3.1.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.
      • Click Apply to save the settings.

  3. Configure 1/0/3 as a routing port and assign an IP address to it.
    1. Select Routing > IP > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Port 1/0/3 check box.

      Now 1/0/3 appears in the Port field at the top.

    3. Enter the following information:
      • In the IP Address field, enter 192.168.4.2.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.
    4. Click Apply to save the settings.

  4. Configure 1/0/21 as a routing port and assign an IP address to it.
    1. Select Routing > IP > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Port 1/0/13 check box.

      Now 1/0/13 appears in the Port field at the top.

    3. Enter the following information:.
      • In the IP Address field, enter 192.168.3.2.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.
    4. Click Apply to save the settings.

  5. Enable IP multicast on the switch.

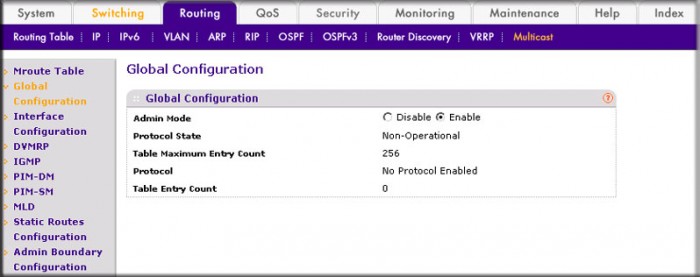

    1. Select Routing > Multicast > Global Configuration.

      A screen similar to the following displays.


    2. For Admin Mode, select the Enable radio button.
    3. Click Apply.

  6. Enable DVMRP on the switch.
    1. Select Routing > Multicast > DVMRP > Global Configuration.

      A screen similar to the following displays.


    2. For Admin Mode, select the Enable radio button.
    3. Click Apply.

  7. Enable DVMRP on the interface.

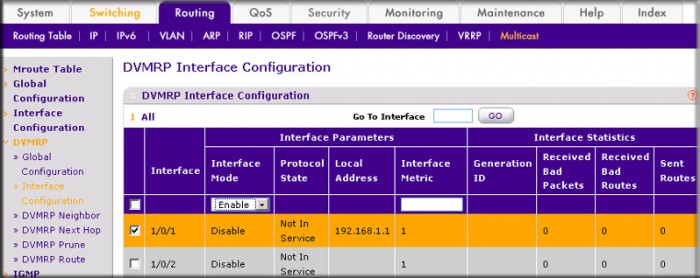

    1. Select Routing > Multicast > DVMRP > Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down select the Interface 1/0/1, 1/0/13, and 1/0/21 check boxes.
    3. In the Interface Mode field, select 300.
    4. Click Apply to save the settings.





DVMRP on Switch B



  1. Enable IP routing on the switch.
    1. Select Routing > IP > Basic > IP Configuration.

      A screen similar to the following displays.


    2. For Routing Mode, select the Enable radio button.
    3. Click Apply.

  2. Configure 1/0/13 as a routing port and assign and IP address to it.

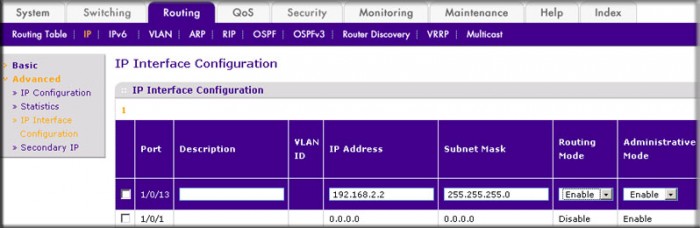

    1. Select Routing > IP > Advanced > IP Interface Configuration.

      A screen similar to the following displays.

    2. Scroll down and select the Port 1/0/13 check box.

      Now 1/0/13 appears in the Port field at the top.

    3. Enter the following information in the IP Interface Configuration.
      • In the IP Address field, enter 192.168.2.2.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.
    4. Click Apply to save the settings.

  3. Configure 1/0/20 as a routing port and assign an IP address to it.

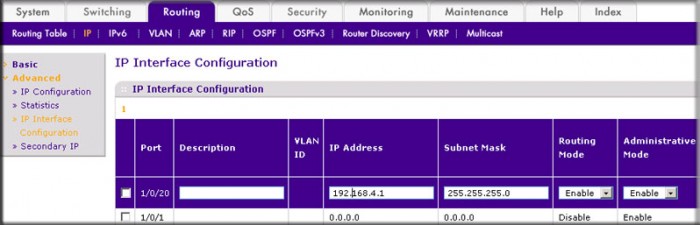

    1. Select Routing > IP > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Scroll and select the Port 1/0/20 check box.

      Now 1/0/20 appears in the Interface field at the top.

    3. Enter the following information:
      • In the IP Address field, enter 192.168.4.1.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.
    4. Click Apply to save the settings.

  4. Enable IP multicast on the switch.
    1. Select Routing > Multicast > Global Configuration.

      A screen similar to the following displays.


    2. For Admin Mode, select the Enable radio button.
    3. Click Apply.

  5. Enable DVMRP on the switch.
    1. Select Routing > Multicast > DVMRP> Global Configuration.

      A screen similar to the following displays.


    2. For Admin Mode, select the Enable radio button.
    3. Click Apply.

  6. Enable DVMRP on the interface.

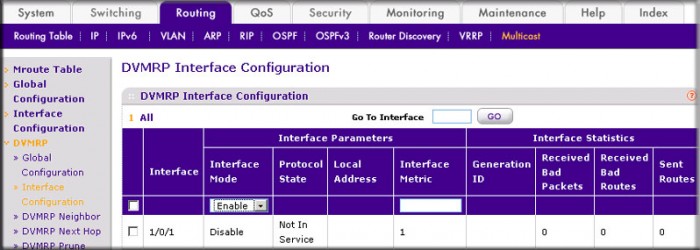

    1. Select Routing > Multicast > DVMRP > Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Interface 1/0/13 and 1/0/20 check boxes.
    3. In the Interface Mode field, select Enable.
    4. Click Apply to save the settings.



DVMRP on Switch C





  1. Enable IP routing on the switch.
    1. Select Routing > IP > Basic > IP Configuration.

      A screen similar to the following displays.

    2. For Routing Mode, select the Enable radio button.
    3. Click Apply.

  2. Configure 1/0/11 as a routing port and assign an IP address to it.

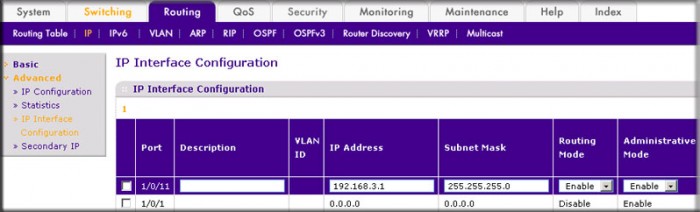

    1. Select Routing > IP > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Port 1/0/11 check box.

      Now 1/0/11 appears in the Port field at the top.

    3. Enter the following information:
      • In the IP Address field, enter 192.168.3.1.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.
    4. Click Apply to save the settings.

  3. Configure 1/0/3 as a routing port and assign an IP address to it.

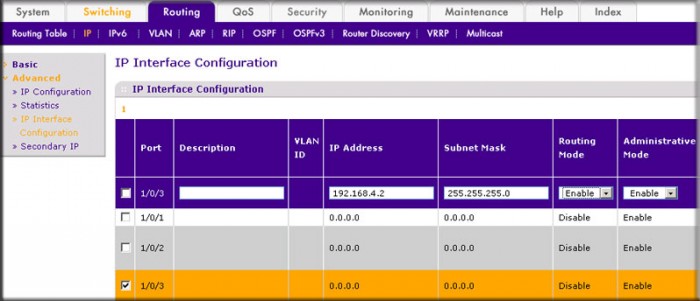

    1. Select Routing > IP > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Port 1/0/3 check box.

      Now 1/0/3 appears in the Port field at the top.

    3. Enter the following information:
      • In the IP Address field, enter 192.168.4.2.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.
    4. Click Apply to save the settings.

  4. Configure 1/0/24 as a routing port and assign an IP address to it.

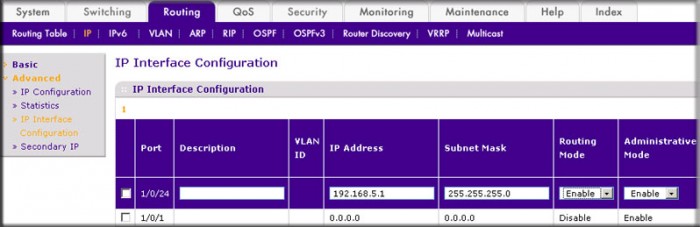

    1. Select Routing > IP > Advanced > IP Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Port 1/0/24 check box.

      Now 1/0/24 appears in the Port field at the top.

    3. Enter the following information:
      • In the IP Address field, enter 192.168.5.1.
      • In the Subnet Mask field, enter 255.255.255.0.
      • In the Routing Mode field, select Enable.
    4. Click Apply to save the settings.

  5. Enable IP multicast on the switch.
    1. Select Routing > Multicast >Global Configuration.

      A screen similar to the following displays.


    2. For Admin Mode, select the Enable radio button.
    3. Click Apply.

  6. Enable DVMRP on the switch.
    1. Select Routing > Multicast > DVMRP > Global Configuration.

      A screen similar to the following displays.


    2. For Admin Mode, select the Enable radio button.
    3. Click Apply.

  7. Enable DVMRP on the interface.

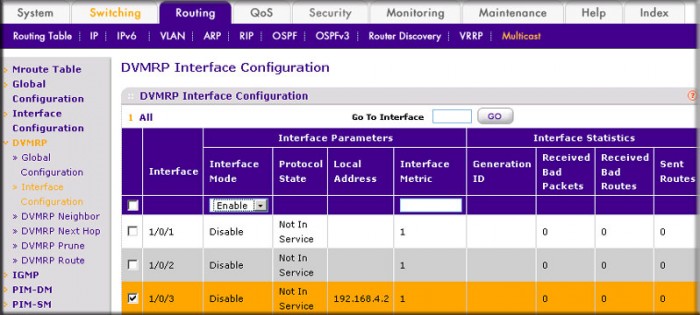

    1. Select Routing > Multicast > DVMRP > Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Interface 1/0/3, 1/0/11, and 1/0/24 check boxes.
    3. Select Enable in the Interface Mode field.
    4. Click Apply to save the settings.

  8. Enable IGMP on the switch.

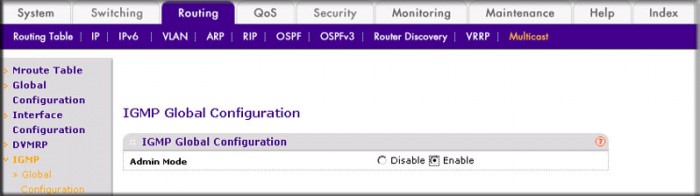

    1. Select Routing > Multicast > IGMP > Global Configuration.

      A screen similar to the following displays.


    2. For Admin Mode, select the Enable radio button.
    3. Click Apply.

  9. Enable IGMP on the interface.

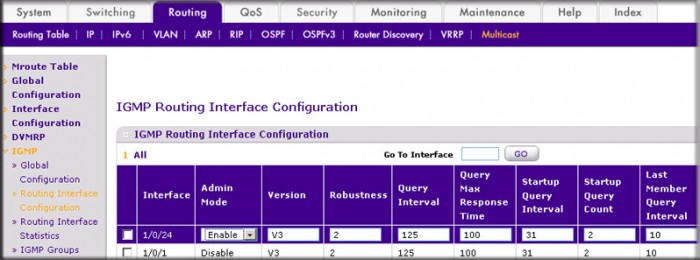

    1. Select Routing > Multicast > IGMP > Routing Interface Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Interface 1/0/24 check box.

      Now 1/0/24 appears in the Interface field at the top.

    3. In the Admin Mode field, select Enable.
    4. Click Apply to save the settings.




For more information, see the following support articles:





This article applies to the following managed switches and their respective firmware:





  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • XSM7224S - firmware version 9.0.1.x (license required to support the feature described in this article)
