The following example creates two groups. Group 1 is in community mode, and Group 2 is in isolated mode.


  1. Create VLAN 200.
    1. Select Switching > VLAN > Basic > VLAN Configuration.

      A screen similar to the following displays.


    2. Enter the following information:
      • In the VLAN ID field, enter 200.
      • In the VLAN Name field, enter VLAN200.
      • In the VLAN Type field, select Static.
    3. Click Add.

  2. Add ports 1/0/6, 1/0/7, 1/0/16, and 1/0/17 to VLAN 200.

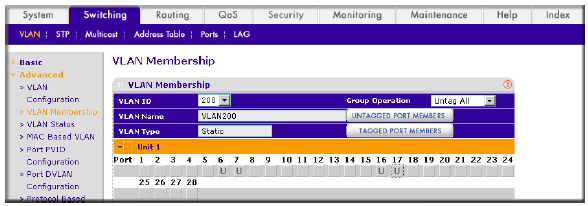

    1. Select Switching > VLAN > Advanced > VLAN Membership.

      A screen similar to the following displays.


    2. Under VLAN Membership, in the VLAN ID list, select 200.
    3. Click Unit 1. The ports display.
    4. Click the gray boxes under ports 6, 7, 16 and 17 until U displays.

      The U specifies that the egress packet is untagged for the port.

    5. Click Apply.

  3. Specify the PVID on ports 1/0/6, 1/0/7, 1/0/16, and 1/0/17.

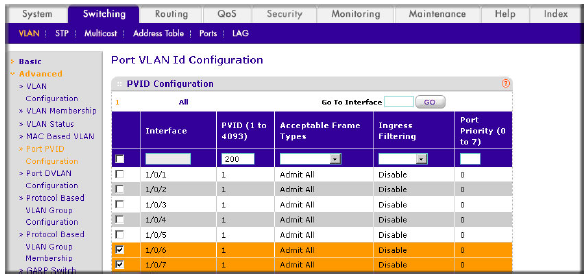

    1. Select Switching > VLAN > Advanced > Port PVID Configuration.

      A screen similar to the following displays.

    2. Under PVID Configuration, scroll down and select the Interface 1/0/6,1/0/7,1/0/16, and 1/0/17 check boxes.
    3. In the PVID (1 to 4093) field, enter 200.
    4. In the Acceptable Frame Type list, select Admit All.
    5. Click Apply to save the settings.

  4. Create a private group, group1.

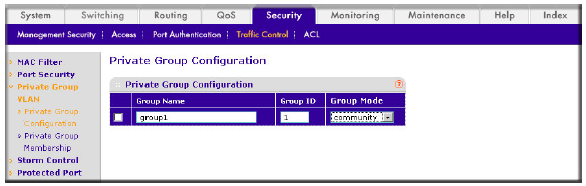

    1. Select Security > Traffic Control > Private Group VLAN > Private Group VLAN > Private Group Configuration.

      A screen similar to the following displays.


    2. In the Group Name field, enter group1.
    3. In the Group ID field, enter 1.
    4. In the Group Mode list, select community.
    5. Click Add.

  5. Add port 6 and 7 to group1.

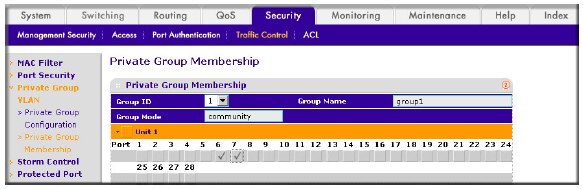

    1. Select Security > Traffic Control > Private Group VLAN >Private Group Membership.

      A screen similar to the following displays.


    2. In the Group ID list, select 1.
    3. Click Unit 1. The ports display.
    4. Click the gray boxes under ports 6 and 7.
      A check mark displays in each box.
    5. Click Apply.

  6. Create a private group, group2.

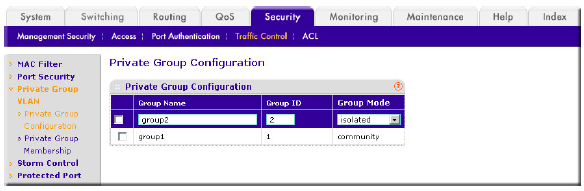

    1. Select Security > Traffic Control > Private Group VLAN > Private Group Configuration.

      A screen similar to the following displays.


    2. In the Group Name field, enter group2.
    3. In the Group ID field, enter 2.
    4. In the Group Mode field, select isolated.
    5. Click Add.

  7. Add ports 16 and 17 to group2.

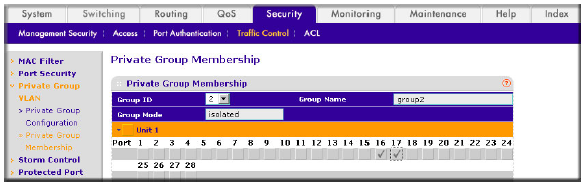

    1. Select Security > Traffic Control > Private Group VLAN > Private Group VLAN > Private Group Membership.

      A screen similar to the following displays.




      b. In the Group ID list, select 2.

    2. Click Unit 2. The ports display.
    3. Click the gray boxes under ports 16 and 17, and a check mark displays in each box.
    4. Click Apply.


For more information, see the following support articles:





This article applies to the following managed switches and their respective firmware:





  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • M4100 - firmware version 10.0.1.x
    • M4100-26G (GSM7224v2h2)
    • M4100-50G (GSM7248v2h2)
    • M4100-26G-POE (GSM7226Pv1h1)
    • M4100-50G-POE+ (GSM7248Pv1h1)
    • M4100-26G-POE (FSM7226Pv1h1)
    • M4100-50-POE (FSM7250Pv1h1)
    • M4100-D12G (GSM5212v1h1)
    • M4100-D10-POE (FSM5210Pv1h1)
  • M7100 - firmware version 10.0.1.x
    • M7100-24X (XSM7224)
  • XSM7224S - firmware version 9.0.1.x
