  1. Create static VLAN 200:
    1. Select Switching > VLAN > Basic > VLAN Configuration.

      A screen similar to the following displays.


    2. Under VLAN Configuration, enter the following information:
      • In the VLAN ID field, enter 200.
      • In the VLAN Name field, enter vlan200.
      • In the VLAN Type field, select Static.
      • Click Add.

  2. Add ports 24 and 48 to VLAN 200.
    1. Select Switching > VLAN > Advanced > VLAN Membership.

      A screen similar to the following displays.


    2. Under VLAN Membership, in the VLAN ID field, select 200.
    3. Click Unit 1. The ports display:
      • Click the gray box under port 24 twice until U displays.

        The U specifies that the egress packet is untagged for the port.

      • Click the gray box under port 48 once until T displays.

        The T specifies that the egress packet is tagged for the port.

    4. Click Apply to save the settings.

  3. Change the port VLAN ID (PVID) of port 24 to 200:
    1. Select Switching > VLAN > Advanced > Port PVID Configuration.

      A screen similar to the following displays.


    2. Scroll down and select the Interface 1/0/24 check box.

      Now 1/0/24 appears in the Interface field at the top.

    3. In the PVID (1 to 4093) field, enter 200.
    4. Click Apply to save the settings.

  4. Configure port 48 as the provider service port:
    1. Select Switching > VLAN > Advanced > Port DVLAN Configuration.

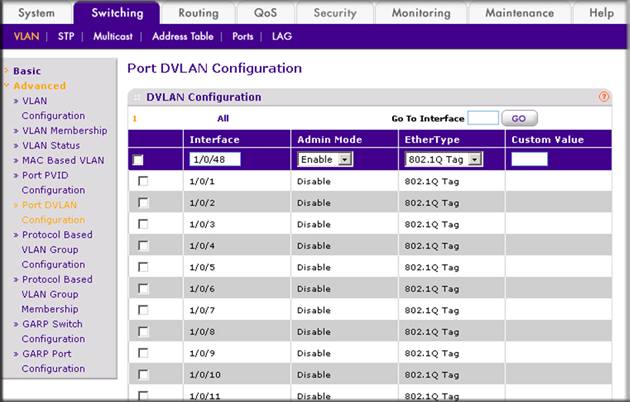

      A screen similar to the following displays.


    2. Scroll down and select the Interface 1/0/48 check box.

      Now 1/0/48 appears in the Interface field at the top.

    3. In the Admin Mode field, select Enable.
    4. Click Apply to save the settings.


For more information, see the follwoing support articles:





This article applies to the following managed switches and their respective firmware:





  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • M4100 - firmware version 10.0.1.x
    • M4100-26G (GSM7224v2h2)
    • M4100-50G (GSM7248v2h2)
    • M4100-26G-POE (GSM7226Pv1h1)
    • M4100-50G-POE+ (GSM7248Pv1h1)
    • M4100-26G-POE (FSM7226Pv1h1)
    • M4100-50-POE (FSM7250Pv1h1)
    • M4100-D12G (GSM5212v1h1)
    • M4100-D10-POE (FSM5210Pv1h1)
  • M7100 - firmware version 10.0.1.x
    • M7100-24X (XSM7224)
  • XSM7224S - firmware version 9.0.1.x
