- Configure the sFlow receiver IP address.
- Select Monitoring > sFlow > Advanced > sFlow Receiver Configuration.
- Select the 1 check box.
- In the Receiver Owner field, enter NetMonitor.
- In the Receiver Timeout field, enter 31536000.
- In the Receiver Address field, enter 192.168.10.2.

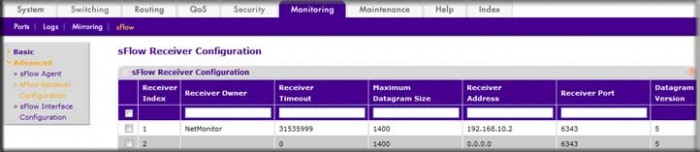

A screen similar to the following displays.
- Click Apply.
A screen similar to the following displays.
- Configure the sampling ports sFlow receiver index, sampling rate, and sampling maximum header size.
- Select Monitoring > sFlow > Advanced > sFlow Interface Configuration.
A screen similar to the following displays.
- Select the Interface 1/0/1 check box.
- In the Sampling Rate field, enter 1024.
- In the Maximum Header Size field, enter 64.
- Click Apply.
A screen similar to the following displays.
- Select Monitoring > sFlow > Advanced > sFlow Interface Configuration.
For more information, see the following support articles:
- What is sFlow and how does it work with my managed switch?
- How do I configure statistical packet-based sampling of packet flows with sFlow using CLI commands on my managed switch?
This article applies to the following managed switches and their respective firmware:
- M5300 - firmware version 10.0.0.x
-
- M5300-28G (GSM7228S)
- M5300-5G (GSM7252S)
- M5300-28G3 (GSM7328Sv2h2)
- M5300-52G3 (GSM7352Sv2h2)
- M5300-28G_POE+ (GSM7228PSv1h2)
- M5300-52G-POE+ (GSM7252PSv1h2)
- M5300-28GF3 (GSM7328FSv2)
- M4100 - firmware version 10.0.1.x
-
- M4100-26G (GSM7224v2h2)
- M4100-50G (GSM7248v2h2)
- M4100-26G-POE (GSM7226Pv1h1)
- M4100-50G-POE+ (GSM7248Pv1h1)
- M4100-26G-POE (FSM7226Pv1h1)
- M4100-50-POE (FSM7250Pv1h1)
- M4100-D12G (GSM5212v1h1)
- M4100-D10-POE (FSM5210Pv1h1)
- M7100 - firmware version 10.0.1.x
-
- M7100-24X (XSM7224)
- XSM7224S - firmware version 9.0.1.x
