  1. Configure a VLAN and include ports 1/0/2 in the VLAN.

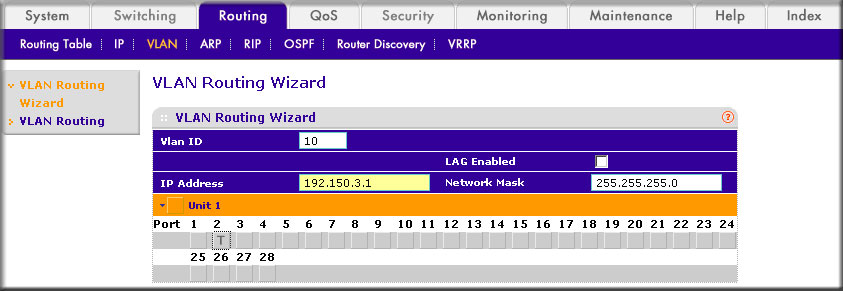

    1. Select Routing > VLAN > VLAN Routing Wizard.

      A screen similar to the following displays.


    2. Enter the following information:
      • In the Vlan ID field, enter 10.
      • In the IP Address field, enter 192.150.3.1.
      • In the Network Mask field, enter 255.255.255.0.

    3. Click Unit 1. The ports display:

      Click the gray box under port 2 until T displays.

      The T specifies that the egress packet is tagged for the port.

    4. Click Apply to save the VLAN that includes ports 2.

  2. Configure a VLAN, and include port 1/0/3 in the VLAN.
    1. Select Routing > VLAN > VLAN Routing Wizard.

      A screen similar to the following displays.


    2. Enter the following information:
      • In the Vlan ID field, enter 20.
      • In the IP Address field, enter 192.150.4.1.
      • In the Network Mask field, enter 255.255.255.0.

    3. Click Unit 1. The ports display:

      Click the gray box under port 3 until T displays.

      The T specifies that the egress packet is tagged for the port.

    4. Click Apply to save the VLAN that includes port 3.

  3. Enable OSPF on the switch.

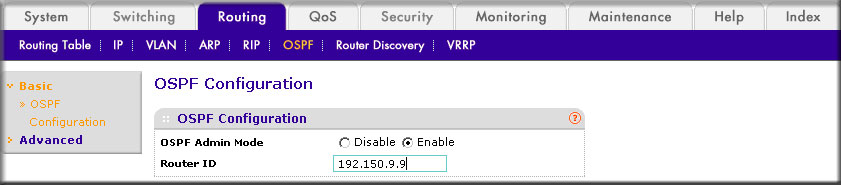

    1. Select Routing > OSPF > Basic > OSPF Configuration.

      A screen similar to the following displays.


    2. For OSPF Admin Mode, select the Enable radio button.
    3. In the Router ID field, enter 192.150.9.9.
    4. Click Apply to save the setting.

  4. Enable OSPF on VLAN 10.

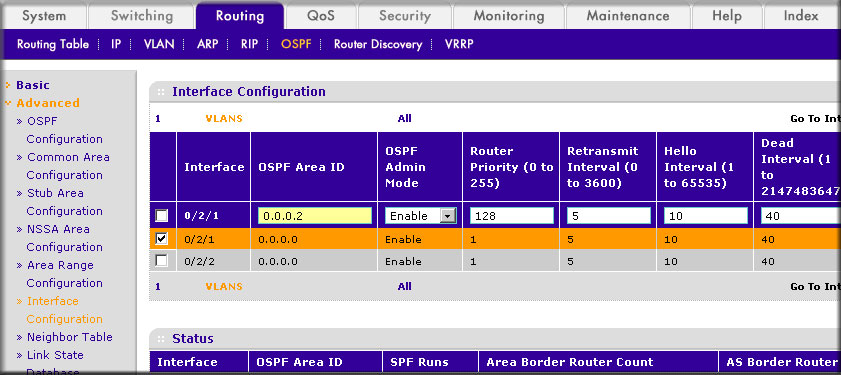

    1. Select Routing > OSPF > Advanced > Interface Configuration.

      A screen similar to the following displays.


    2. Under Interface Configuration, click VLANS to show all the VLAN interfaces.
    3. Scroll down and select the interface 0/2/1 check box. Now 0/2/1 appears in the Interface field at the top.
    4. Enter the following information:
      • In the OSPF Area ID field, enter 0.0.0.2.
      • In the OSPF Admin Mode field, select Enable.
      • In the Priority field, enter 128.
      • In the Metric Cost field, enter 32.

    5. Click Apply to save the settings.

  5. Enable OSPF on VLAN 20.
    1. Select Routing > OSPF > Advanced > Interface Configuration.

      A screen similar to the following displays.


    2. Under Interface Configuration, click VLANS to show all the VLAN interfaces.
    3. Scroll down and select the interface 0/2/2 check box.

      Now 0/2/2 appears in the Interface field at the top.

    4. Enter the following information:
      • In the OSPF Area ID field, enter 0.0.0.3.
      • In the OSPF Admin Mode field, select the Enable.
      • In the Priority field, enter 255.
      • In the Metric Cost field, enter 64.

    5. Click Apply to save the settings.



For more information, see the following support articles:





This article applies to the following managed switches and their respective firmware:





  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • XSM7224S - firmware version 9.0.1.x (license required to support the feature described in this article)



Last Updated:07/07/2025 | Article ID: 21694
