  1. Create VLAN 10 and VLAN20.
    1. Select Switching > VLAN > Advanced > VLAN Configuration.

      A screen similar to the following displays.


    2. In the VLAN ID field, enter 10.
    3. In the VLAN Name field, enter VLAN10.
    4. In the VLAN Type list, select Static.
    5. Click Add.
    6. Select Switching > VLAN > Advanced > VLAN Configuration.

      A screen similar to the following displays.


    7. In the VLAN ID field, enter 20.
    8. In the VLAN Name field, enter VLAN20.
    9. In the VLAN Type list, select Static.
    10. Click Add.

  2. Add ports to the VLAN10 and VLAN20.
    1. Select Switching > VLAN > Advanced > VLAN Membership.

      A screen similar to the following displays.


    2. In the VLAN ID field, select 10.
    3. Click the Unit 1. The ports display.
    4. Click the gray boxes under ports 1 and 2 until T displays.

      The T specifies that the egress packet is tagged for the port.

    5. Click Apply.
    6. Select Switching > VLAN > Advanced > VLAN Membership.

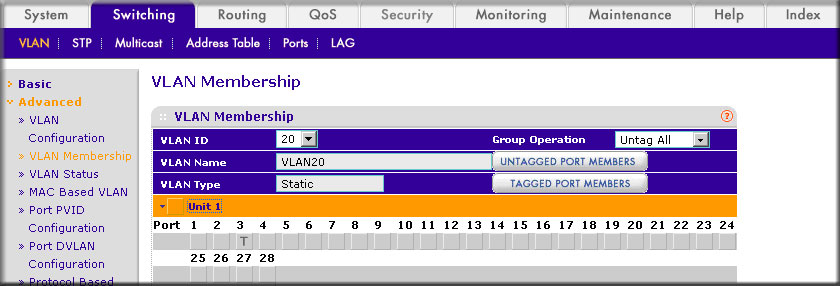

      A screen similar to the following displays.


    7. In the VLAN ID list, select 20.
    8. Click Unit 1. The ports display.
    9. Click the gray box under port 3 until T displays.

      The T specifies that the egress packet is tagged for the port.

    10. Click Apply.

  3. Assign PVID to VLAN10 and VLAN20.
    1. Select Switching > VLAN > Advanced > Port PVID Configuraton.

      A screen similar to the following displays.


    2. Scroll down and select 1/0/1 and 1/0/2 check boxes.
    3. In the PVID (1 to 4093) field, enter 10.
    4. Click Apply to save the settings.
    5. Select Switching > VLAN > Advanced > Port PVID Configuraton.

      A screen similar to the following displays.


    6. Scroll down and select the 1/0/3 check box.
    7. In the PVID (1 to 4093) field, enter 20.
    8. Click Apply to save the settings.


For more information, see the following support articles:





This article applies to the following managed switches and their respective firmware:





  • M5300 - firmware version 10.0.0.x
    • M5300-28G (GSM7228S)
    • M5300-5G (GSM7252S)
    • M5300-28G3 (GSM7328Sv2h2)
    • M5300-52G3 (GSM7352Sv2h2)
    • M5300-28G_POE+ (GSM7228PSv1h2)
    • M5300-52G-POE+ (GSM7252PSv1h2)
    • M5300-28GF3 (GSM7328FSv2)
  • M4100 - firmware version 10.0.1.x
    • M4100-26G (GSM7224v2h2)
    • M4100-50G (GSM7248v2h2)
    • M4100-26G-POE (GSM7226Pv1h1)
    • M4100-50G-POE+ (GSM7248Pv1h1)
    • M4100-26G-POE (FSM7226Pv1h1)
    • M4100-50-POE (FSM7250Pv1h1)
    • M4100-D12G (GSM5212v1h1)
    • M4100-D10-POE (FSM5210Pv1h1)
  • M7100 - firmware version 10.0.1.x
    • M7100-24X (XSM7224)
  • XSM7224S - firmware version 9.0.1.x
