Wireless deployment for a Corporate and Public network

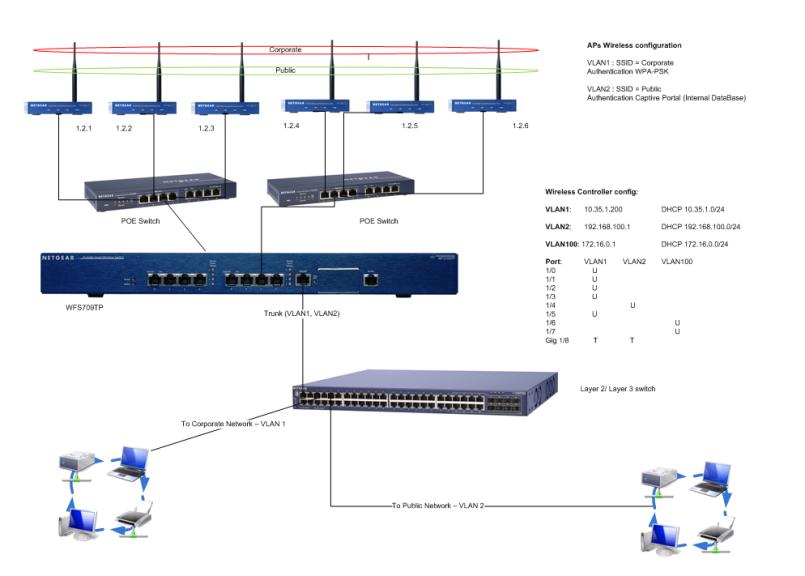

The network diagram below describes a Wireless solution implemented using the Wireless Controller WFS709TP and multiple Lightweight Access Points (WGL102).
The solution encompasses an environment with multiple SSIDs, with VLAN separation, VLAN routing and DHCP enabled for each VLAN to serve the Wireless clients with the relevant TCP/IP settings.
